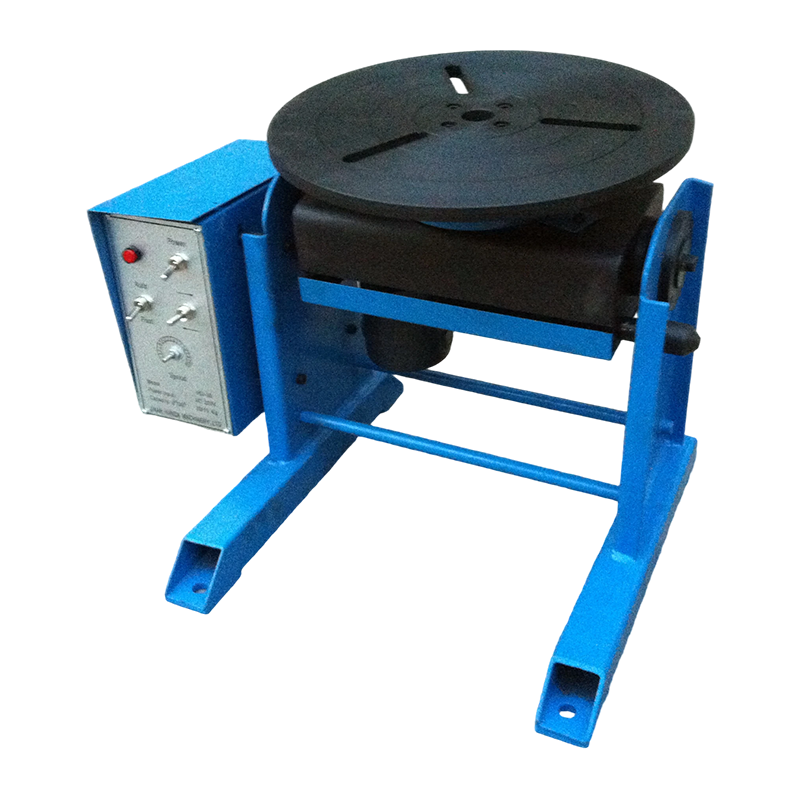

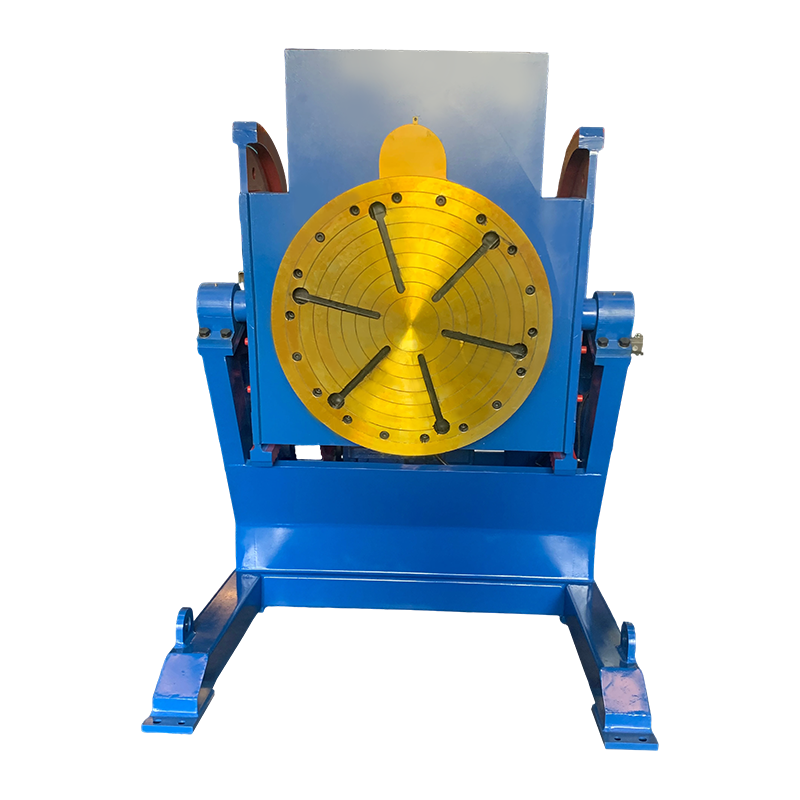

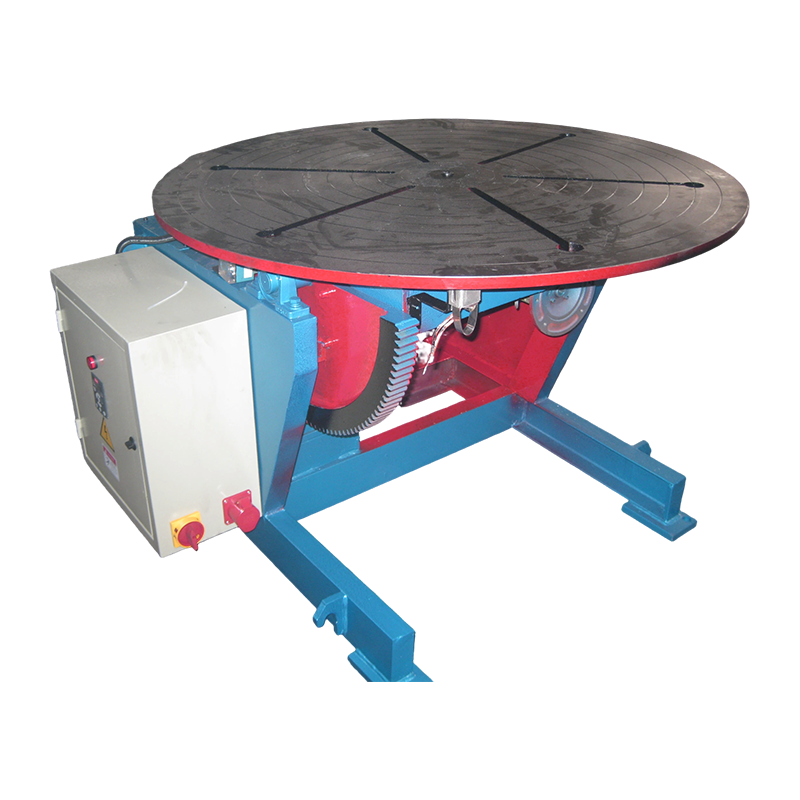

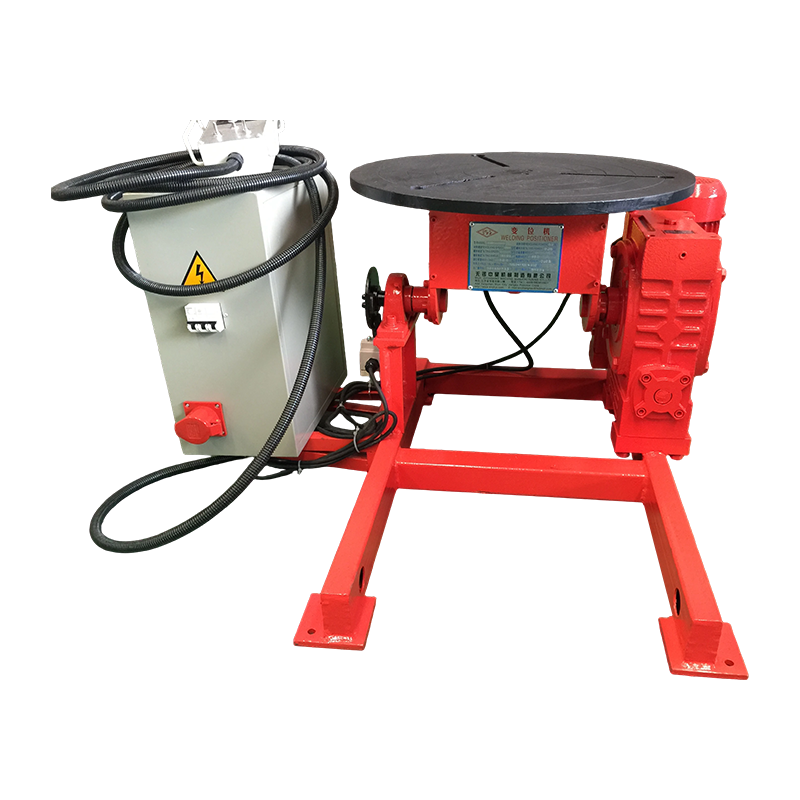

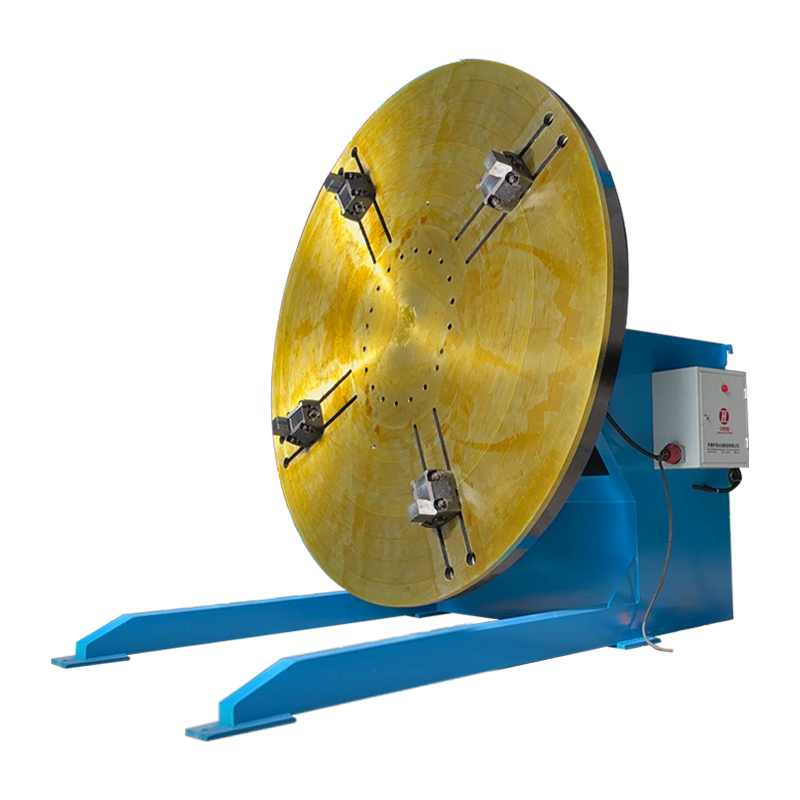

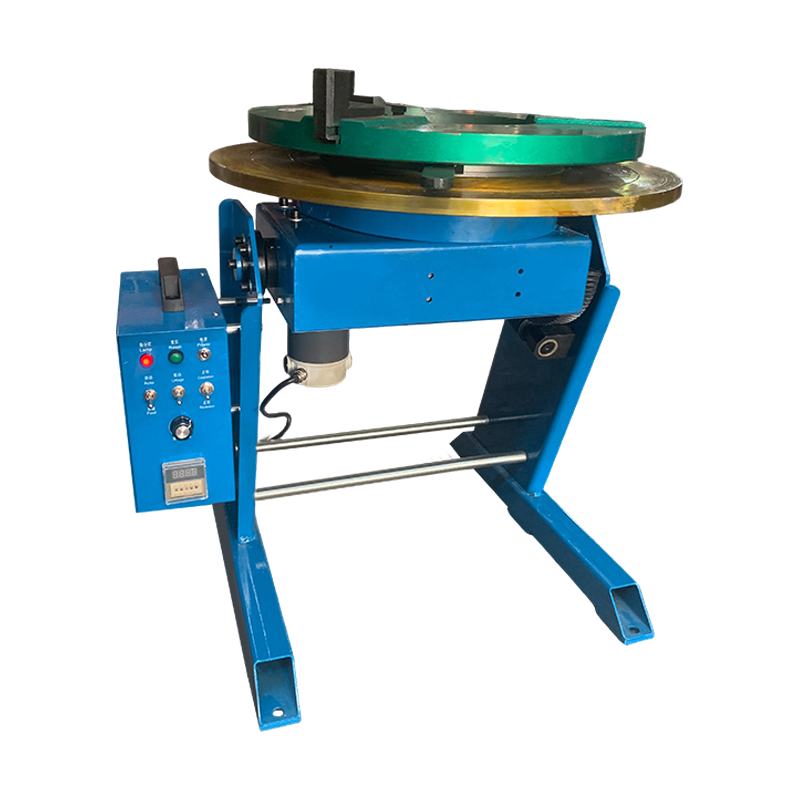

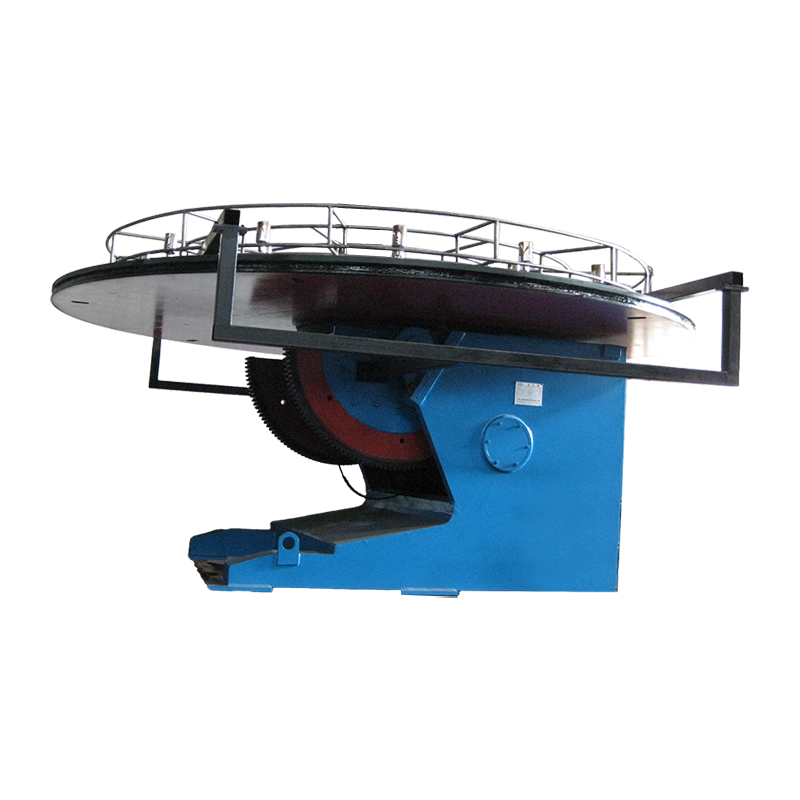

Conventional Welding Positioner Manufacturer

Conventional Welding Positioner is a fundamental equipment in industrial welding processes, designed with standardized rotation and tilting functions to adjust fixed workpieces into optimal welding postures. Its rotation function adopts variable frequency drive (VFD) for stepless speed regulation, while the tilting function operates at a constant speed, ensuring stable and efficient workpiece positioning for welding operations. As a professional manufacturer of welding equipment founded in 2004, Wuxi WeldNice Heavy Industry Technology Co., Ltd. integrates design, development, manufacturing and sales, and its Conventional Welding Positioner series adheres to strict quality standards—backed by advanced production and processing equipment, complete testing facilities, and a comprehensive quality assurance system—to meet the basic positioning needs of various welding scenarios. Widely used in small to medium-sized workpiece welding, this equipment category enhances welding accessibility, reduces manual adjustment time, and lays a solid foundation for consistent welding quality, which has been verified by numerous domestic and foreign users served by Wuxi WeldNice over the years.

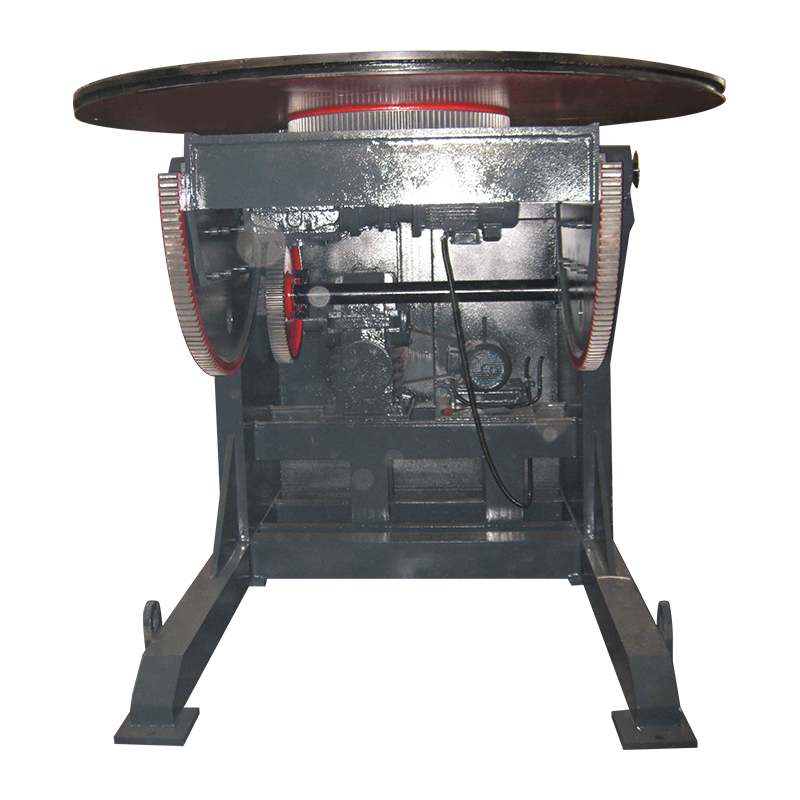

Working Principle

• Rotation System: Driven by a variable frequency motor, the rotation mechanism converts electrical energy into mechanical torque to drive the workpiece turntable. The VFD technology enables stepless speed adjustment (typically 0.5-10 rpm for standard models), allowing operators to match the rotation speed with welding parameters (e.g., current, welding speed) according to workpiece size and welding requirements. Wuxi WeldNice’s rotation system adopts precision gear transmission, ensuring rotation accuracy within ±0.1°, which effectively avoids welding defects caused by unstable rotation.

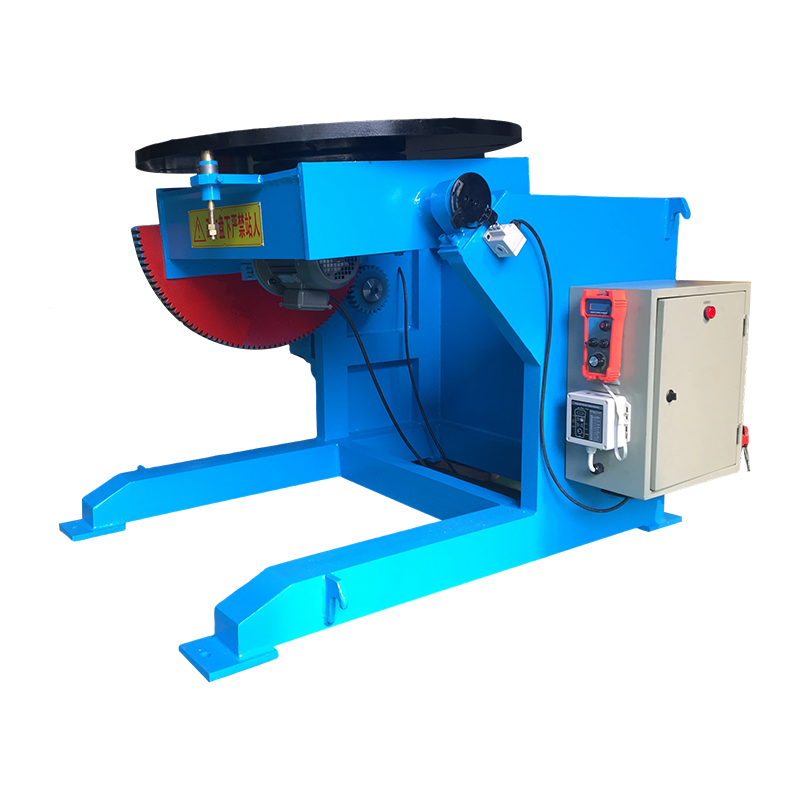

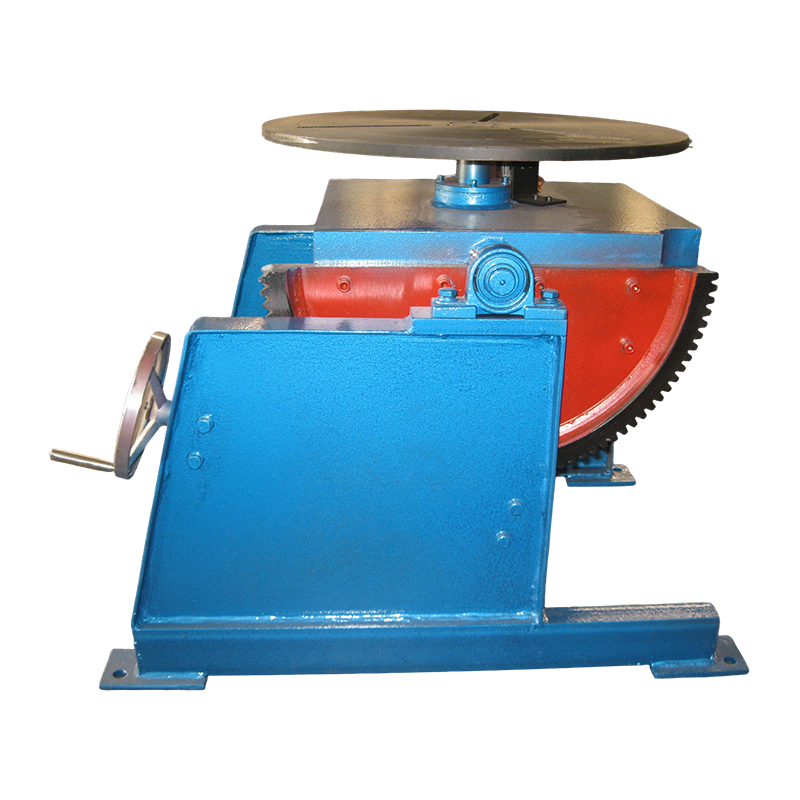

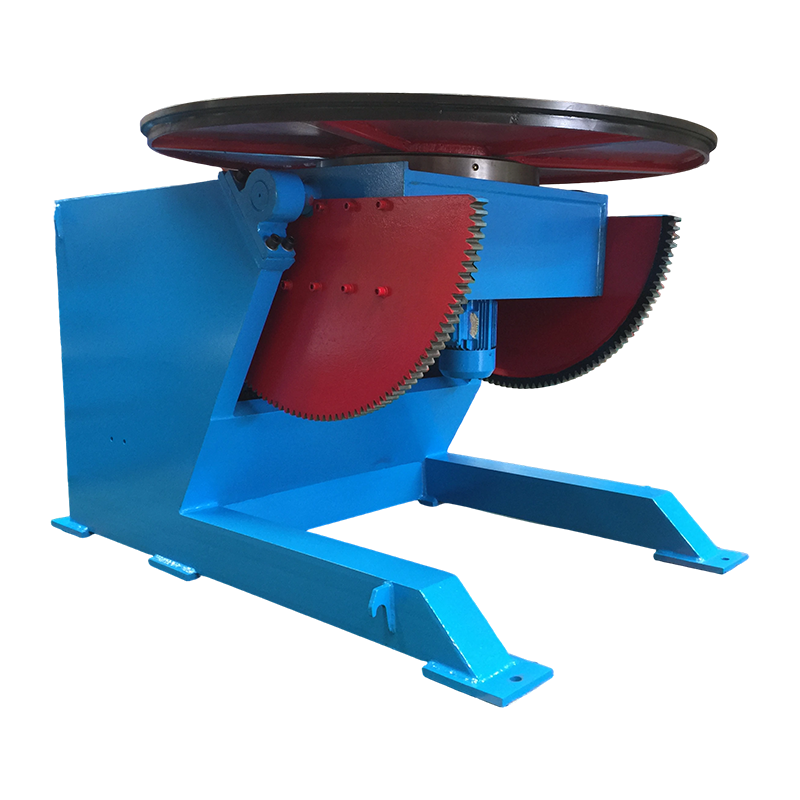

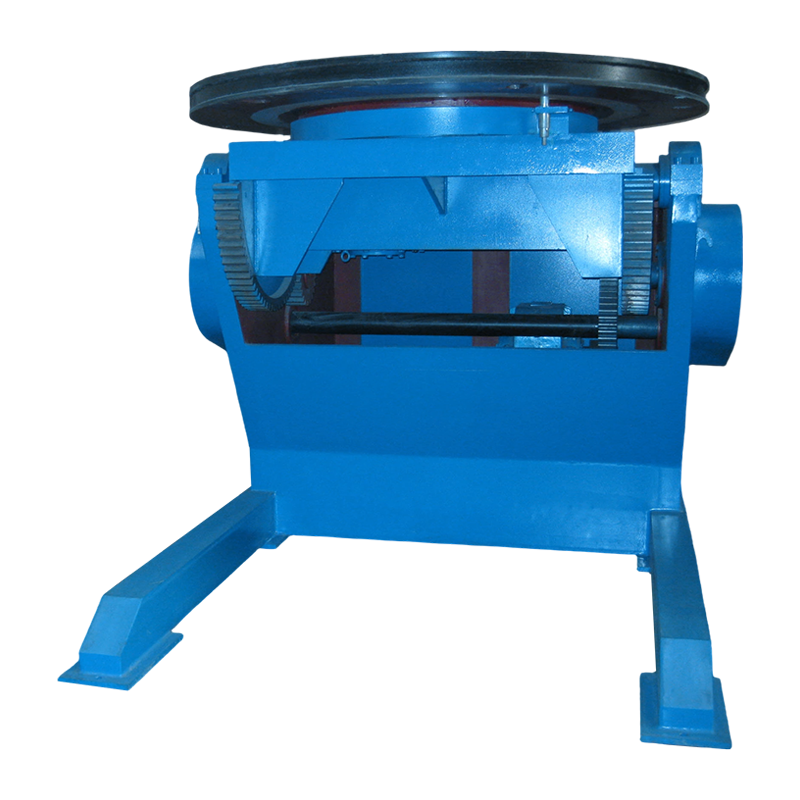

  Tilting System: Equipped with a constant-speed hydraulic or electric drive, the tilting mechanism adjusts the workpiece’s angle (usually 0-90°) to enable welding of horizontal, vertical, or overhead seams. The constant-speed design ensures smooth angle changes without sudden jitters, protecting the workpiece from collision or welding bead deviation. The tilting structure of Wuxi WeldNice’s Conventional Welding Positioner is manufactured with high-strength steel plates, undergoing strict load-bearing tests to ensure stability under rated load conditions.



  Application Cases

  Conventional Welding Positioner is widely used in industries requiring standardized welding operations, with typical application scenarios verified by Wuxi WeldNice’s cooperative projects:
  • Engineering Machinery: In the production of small excavator arms and loader frames, the equipment tilts the workpiece to a horizontal position, enabling flat welding of longitudinal seams. A domestic construction machinery manufacturer adopted Wuxi WeldNice’s Conventional Welding Positioner (load capacity 3000 kg), reducing manual adjustment time by 40% and improving welding pass rate from 85% to 98%.
  • Pressure Vessels: For small pressure tanks (volume ≤ 500L), the rotation function ensures uniform welding of circumferential seams, while the tilting function facilitates welding of flange connections. Wuxi WeldNice has provided 200+ sets of Conventional Welding Positioner for a Southeast Asian pressure vessel enterprise, adapting to local humidity and high-temperature workshop conditions through optimized protection design.
  • Steel Structure: In the fabrication of light steel frames and stair handrails, the equipment adjusts the workpiece angle to avoid overhead welding, reducing operator fatigue and improving welding efficiency. A European steel structure manufacturer chose Wuxi WeldNice’s products for their compatibility with international power standards and stable performance in long-term continuous operations.



    Product Comparison: Conventional vs. CNC Welding Positioner

    Comparison Dimension	Conventional Welding Positioner (Wuxi WeldNice)	CNC Welding Positioner (Industry Reference)
    Drive Mode	VFD rotation + constant-speed tilting	CNC servo drive (rotation + tilting)
    Control Precision	±0.1° (rotation), ±1° (tilting)	±0.01° (rotation), ±0.1° (tilting)
    Operation Mode	Manual/foot pedal control	Programmed automatic control
    Applicable Workpieces	Small to medium-sized, regular-shaped workpieces with simple welding paths	Large, complex-shaped workpieces with precise welding requirements
    Cost-Effectiveness	High (entry-level positioning solution, low maintenance cost)	Medium to high (high-precision scenarios, higher maintenance cost)
    Typical Users	Small and medium-sized manufacturing enterprises, processing workshops	Large-scale enterprises, high-end equipment manufacturing industries

  Maintenance Guide

  To ensure the service life (≥8 years for Wuxi WeldNice products) and stable performance of Conventional Welding Positioner, follow these maintenance requirements:

  Daily Maintenance (After Each Use)

  • Clean the turntable and tilting frame with a dry cloth to remove welding spatter, dust, and oil stains; avoid using high-pressure water to flush electrical components (e.g., VFD controller).
  • Check the tightness of connecting bolts (turntable, motor base) and tighten if loose; Wuxi WeldNice’s products adopt anti-loosening bolts to reduce maintenance frequency.

  Regular Maintenance (Every 3 Months)

  • Replace the lubricating oil in the gearbox (use 220# industrial gear oil as recommended by Wuxi WeldNice) to ensure smooth transmission; drain the old oil completely before refilling.
  • Inspect the hydraulic system (for hydraulic-driven models) for oil leakage; replace damaged seals in a timely manner, and use hydraulic oil that meets ISO VG46 standards.
  • Test the VFD controller’s speed regulation function to ensure no abnormal noise or speed fluctuation; clean the controller’s heat dissipation vents to prevent overheating.



    Fault Handling

    Common Fault	Cause	Solution
    Tilting mechanism jitters	Insufficient lubrication/worn gears	Add lubricating oil; replace gears with Wuxi WeldNice’s original spare parts to ensure compatibility.
    Self-locking failure during tilting	Damaged locking mechanism	Stop using immediately; our professional maintenance personnel will provide on-site repair services (available in major domestic cities and key overseas markets).

  FAQ

  Q1: How to select the appropriate Conventional Welding Positioner based on workpiece parameters?

  A: The key selection criteria are workpiece weight, turntable size compatibility, and welding process requirements: 1) Load capacity should be 1.2-1.5 times the workpiece weight (to reserve safety margin); 2) Turntable diameter should be 1.3-1.5 times the maximum workpiece width (to ensure stable placement); 3) For circumferential seam welding, prioritize VFD rotation speed range matching the welding speed (0.5-10 rpm for standard models). Wuxi WeldNice provides free 选型 consulting services, and users can provide workpiece 3D drawings or parameters to obtain customized recommendations.

  Q2: Can the VFD rotation speed of Conventional Welding Positioner be customized beyond the standard range (0.5-10 rpm)?

  A: Yes. The standard speed range (0.5-10 rpm) covers most conventional welding processes (e.g., manual arc welding, MIG/MAG welding), but for special scenarios (e.g., low-speed welding of thick workpieces, high-speed welding of thin plates), Wuxi WeldNice can customize the VFD controller parameter settings to expand the speed range to 0.1-15 rpm. The customization is based on the motor power and gearbox transmission ratio, ensuring stable performance without affecting equipment service life.

  Q3: What is the difference between hydraulic and electric drive for the tilting function, and how to choose?

  A: The core differences lie in load-bearing capacity, operation smoothness, and maintenance requirements:
  • Hydraulic drive: Suitable for heavy-load models (load capacity ≥5000 kg), with strong torque and smooth tilting; requires regular oil replacement and leakage inspection.
  • Electric drive: Suitable for light to medium-load models (load capacity ≤5000 kg), with simple structure, low maintenance cost, and energy-saving advantages.
    Wuxi WeldNice recommends hydraulic drive for heavy workpiece welding (e.g., large steel structures) and electric drive for small to medium workpieces (e.g., small pressure vessels) to balance performance and cost.

  Q4: Can Conventional Welding Positioner be used with automated welding equipment (e.g., welding robots)?

  A: Yes. Although Conventional Welding Positioner adopts manual/foot pedal control by default, it can be equipped with a signal interface (optional) to connect with welding robots or automated welding arms. The equipment’s rotation and tilting actions can be synchronized with the welding system through external control signals, realizing semi-automatic welding operations. Wuxi WeldNice has completed matching adaptations with mainstream welding robot brands (e.g., FANUC, YASKAWA), and provides technical support for system integration.

  Q5: What installation conditions are required for Conventional Welding Positioner?

  A: Basic installation conditions include: 1) Foundation: Flat concrete ground (bearing capacity ≥2 times the equipment weight) to avoid vibration during operation; 2) Power supply: 380V/50Hz three-phase alternating current (voltage fluctuation ≤±10%), with independent circuit protection (e.g., leakage protector); 3) Environment: Indoor or semi-outdoor (avoid direct rain), ambient temperature -10°C to 45°C, relative humidity ≤85%. Wuxi WeldNice provides detailed installation guidelines with each product, and offers on-site installation guidance services for large models.
